Dustkiller®

Electrostatic Dust Filtration System

Dust Collector Manufacturers

Dustkiller® – Dust filtration system, is a high-efficiency, two-stage electrostatic precipitator, designed, developed and manufactured by Powertech Pollution Controls Pvt. Ltd. Bangalore, India.

Features

This equipment can achieve a high level of dust control in any closed area. Very fine floating particles can be captured before they can settle down on sensitive precision equipment. It provides high dust capture efficiency . All filter modules are many times washable and re-usable during the life of the equipment. Maintenance and running costs are low when compared to conventional mechanical filters. We have incorporated safety features such as high voltage fault trip circuitry for reliable , safe and efficient functioning. These systems contribute to a safer, healthier work environment where toxic airborne pollutants are removed. We provide excellent factory support and product expertise based on years of industrial process emission control.

Re-usable

Safe & Secure

Low Maintenance

Eco Friendly

Factory Support

Applications

Dustkiller® can be used for controlling dust and fine particles in any closed room, preferably but not necessarily fitted with window / split type airconditioners – electronic labs, mechanical precision assembly areas, standards room, metrology labs, pharmaceuticals, bio-tech labs etc., or wherever dust control is a necessity. Dustkiller&reg can be quickly installed without major changes in the existing area.

How it Works

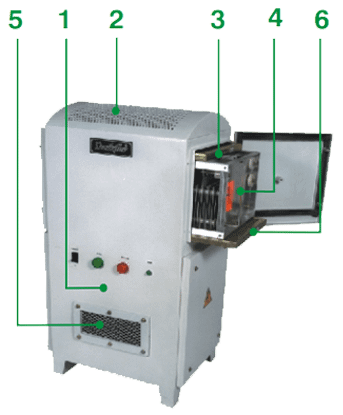

Dust and fine particulate matter are sucked in with the air stream by the centrifugal blower (1) through the inlet (2) on top. These enter the prefilter (3) where large particles are removed . The remaining fine particles then enter the electrostatic modules (4) where, between a series of parallel aluminium plates, they receive a high +ve charge. These positively charged particles then pass through another series of aluminium plates which are negatively charged. Here, the particles are attracted to the oppositely charged aluminium plates and stick to them just like iron filings are attracted to a magnet, but with one difference – the particles remain adhered to the plates even when the electrostatic filter is switched off. The air, now devoid of particles, escape through the outlet (5) as clean air. The postfilter (6) help in even distribution of air flow through the electrostatic module and also controls odor & smell when filled with activated carbon granules.
Technical Specifications*
Model DK250 DK500 DK1000
Air Flow Capacity 250Cu mtrs/hour 500Cu mtrs/hour 1000Cu mtrs/hou
Input Voltage 230V±10% 230V±10% 230V±10%
Current drawn 0.25Amps 0.35Amps 0.7Amps
Filters Prefilters : Wire mesh Filter Modules : Electrostatic with aluminium plates & high voltage insulators. Postfilter : Activated carbon granules Prefilters : Wire mesh Filter Modules : Electrostatic with aluminium plates & high voltage insulators. Postfilter : Activated carbon granules Prefilters : Wire mesh Filter Modules : Electrostatic with aluminium plates & high voltage insulators. Postfilter : Activated carbon granules
Filter efficiency 90% to 98% for airborne particles 90% to 98% for airborne particles 90% to 98% for airborne particles
Power Pack 4KV to 6KV DC 4KV to 6KV DC 8KV DC - 10KV DC 4KV DC - 6KV DC
Suction fan/motor Centrifugal blower, 60 watts, 1 phase Centrifugal blower, 80 watts, 1 phase/td> Centrifugal blower, 160 watts, 1 phase
Dimensions in mm (LxWxH) Enclosure 400x320x660 Enclosure 500x360x850 Enclosure 900x360x850
Mounting Table top, Floor mounted, Wall mounted with fixtures Floor mounted, Wall mounted with fixtures Floor mounted, Wall mounted with fixtures

* Due to continuous innovation, specifications are subject to change without notice.
